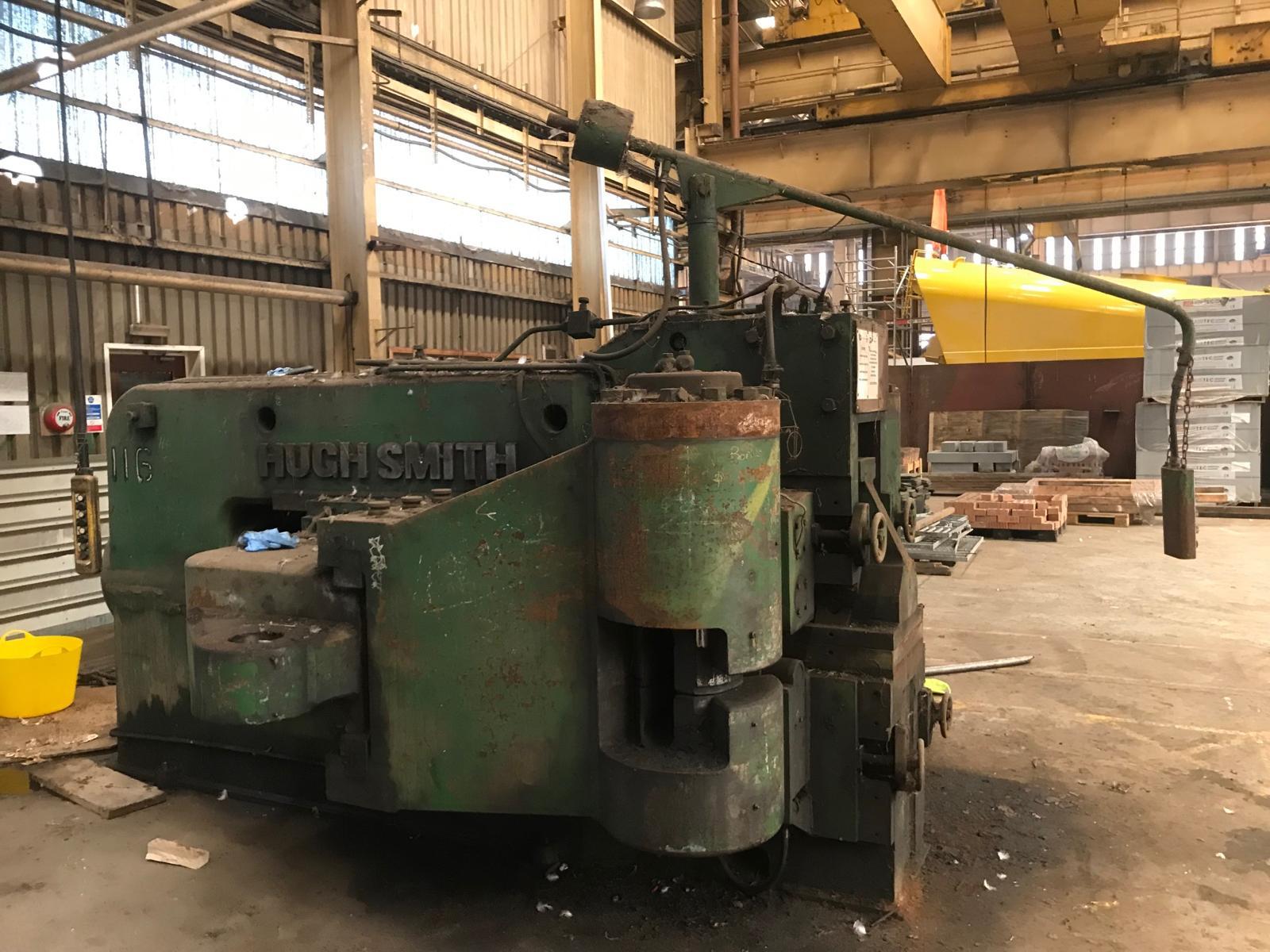

Hugh Smith Frame Bender

Details:
Specification and Capacity
Forward and reverse bending force 400 tf
Max bending arm clamp force 80 tf
Max centre clamp force 80 tf
Bending arm centres 1540 mm

Bending arm stroke
Max forward 165 mm
Max reverse 270 mm
Section feed though machine 140 kNm
Max elastic modulus of sections
For (25 kg/mm2 yield) material 2400 cm3
For (55 kg/mm2 yield) material 1100 cm3
Section Diemensions
Maximum Depth of section web 600 mm
Min Dpeth of section web 100 mm
Max height of section flange 125 mm
